SKU - HDR240.28.20

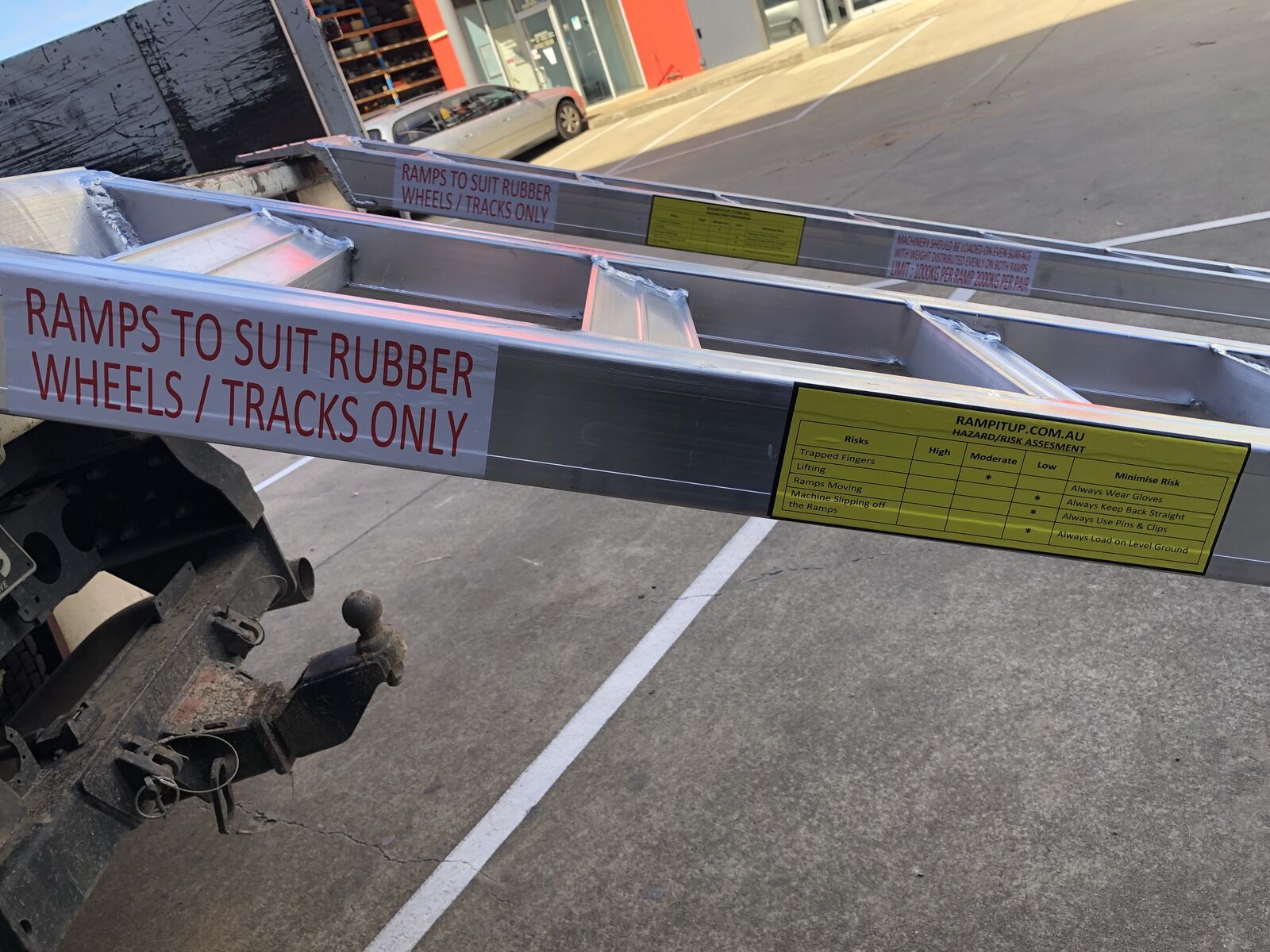

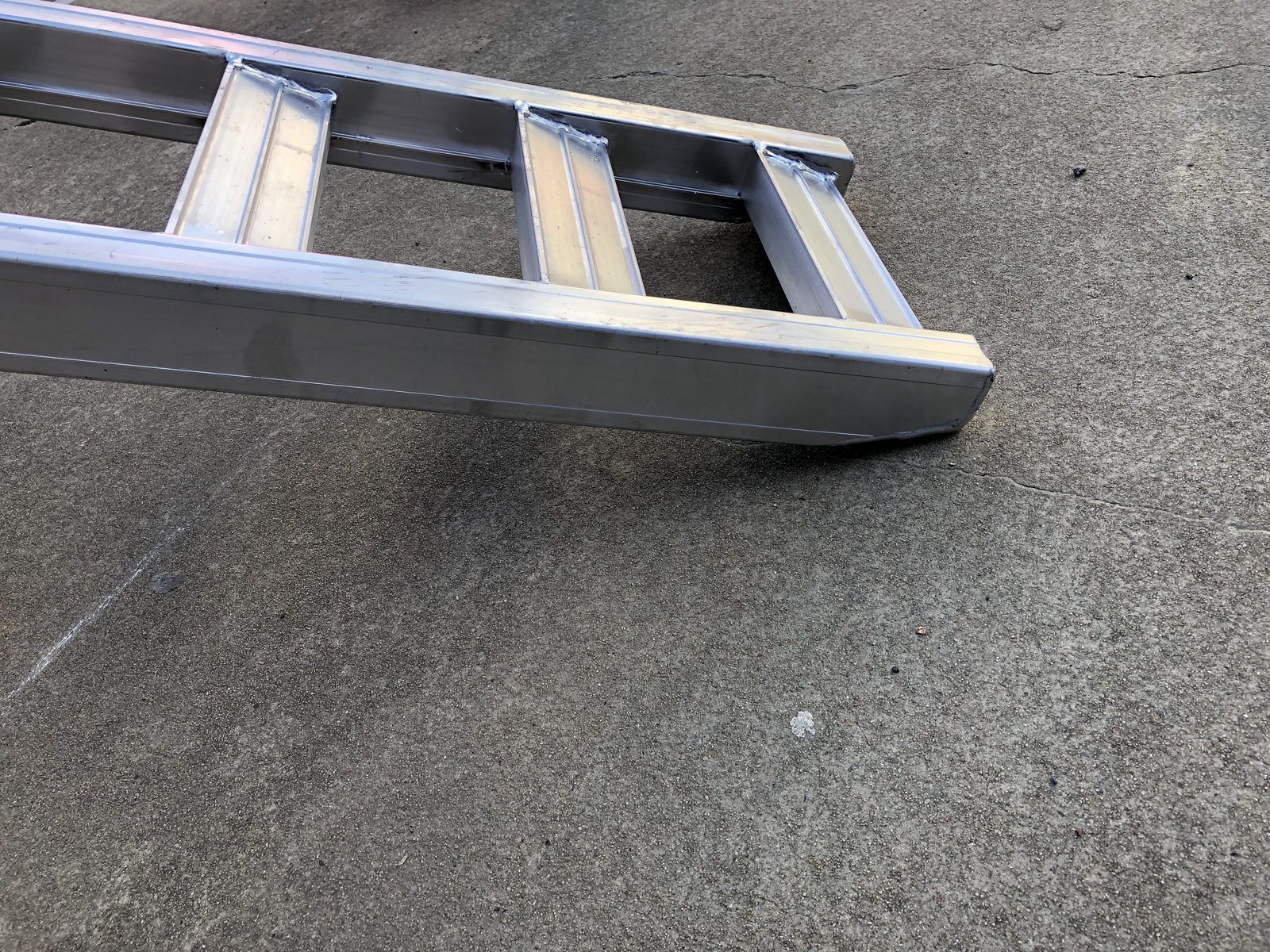

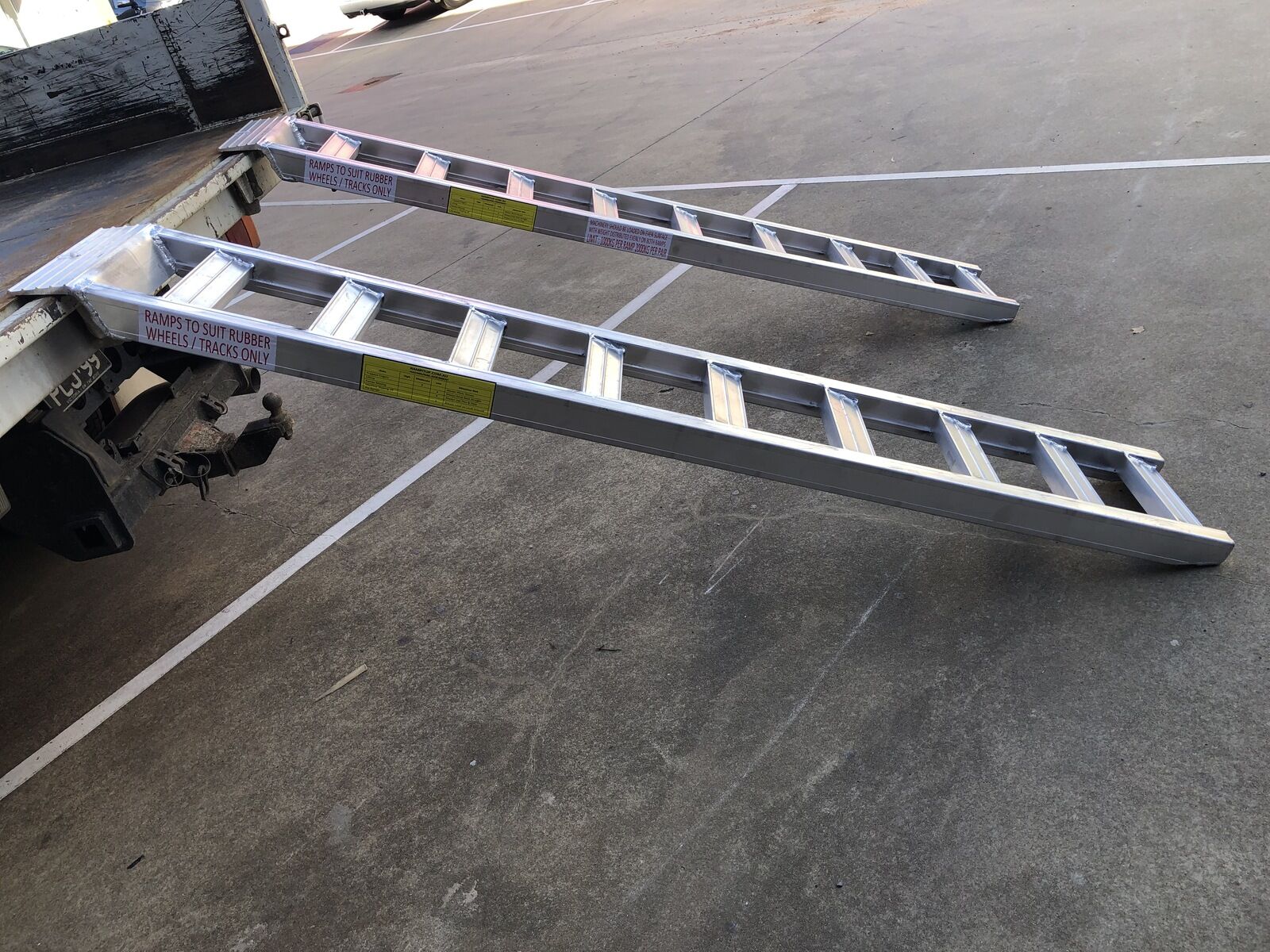

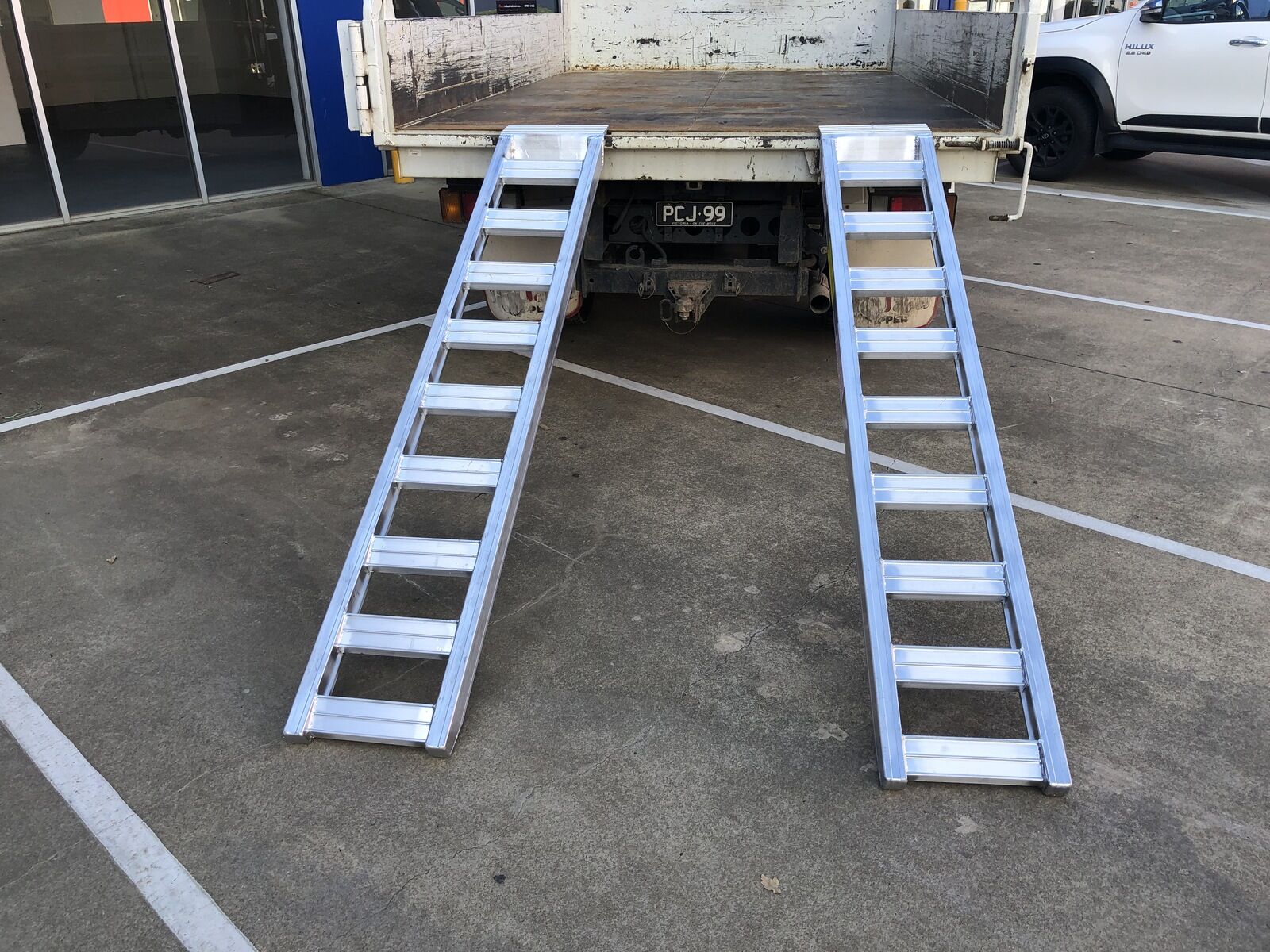

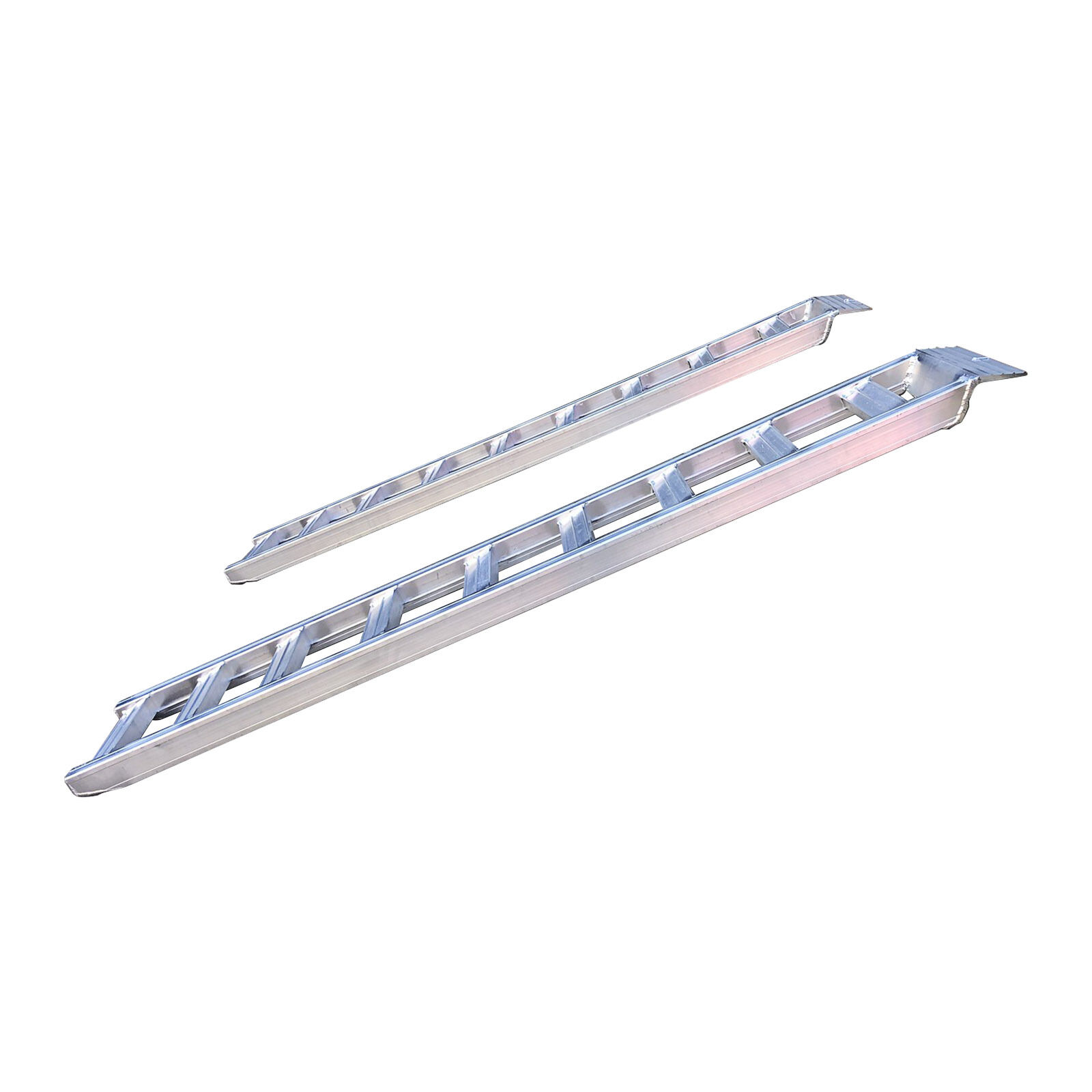

  • These lightweight Aluminium ramps are ideal for loading excavators, skid steer loaders, ditch witches, mini excavators and many more.
  • These ramps are suited to rubber tracked machines

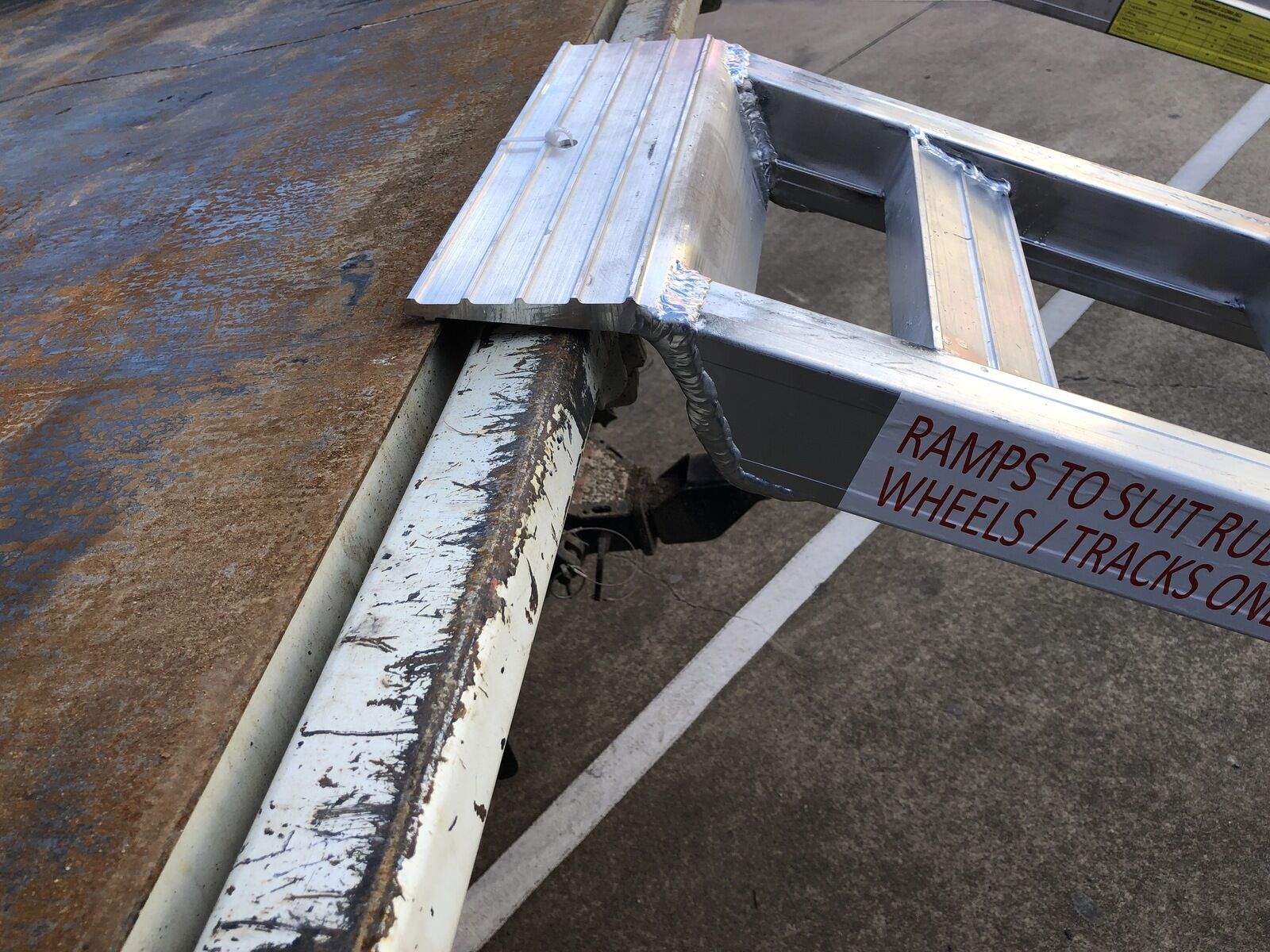

  • The connecting plate and pin ensure maximum stability and safety


Length (mm): 2400
Inner Width (mm) :280
Outer Width (mm) :380
Height of Ramp Profile (mm):82

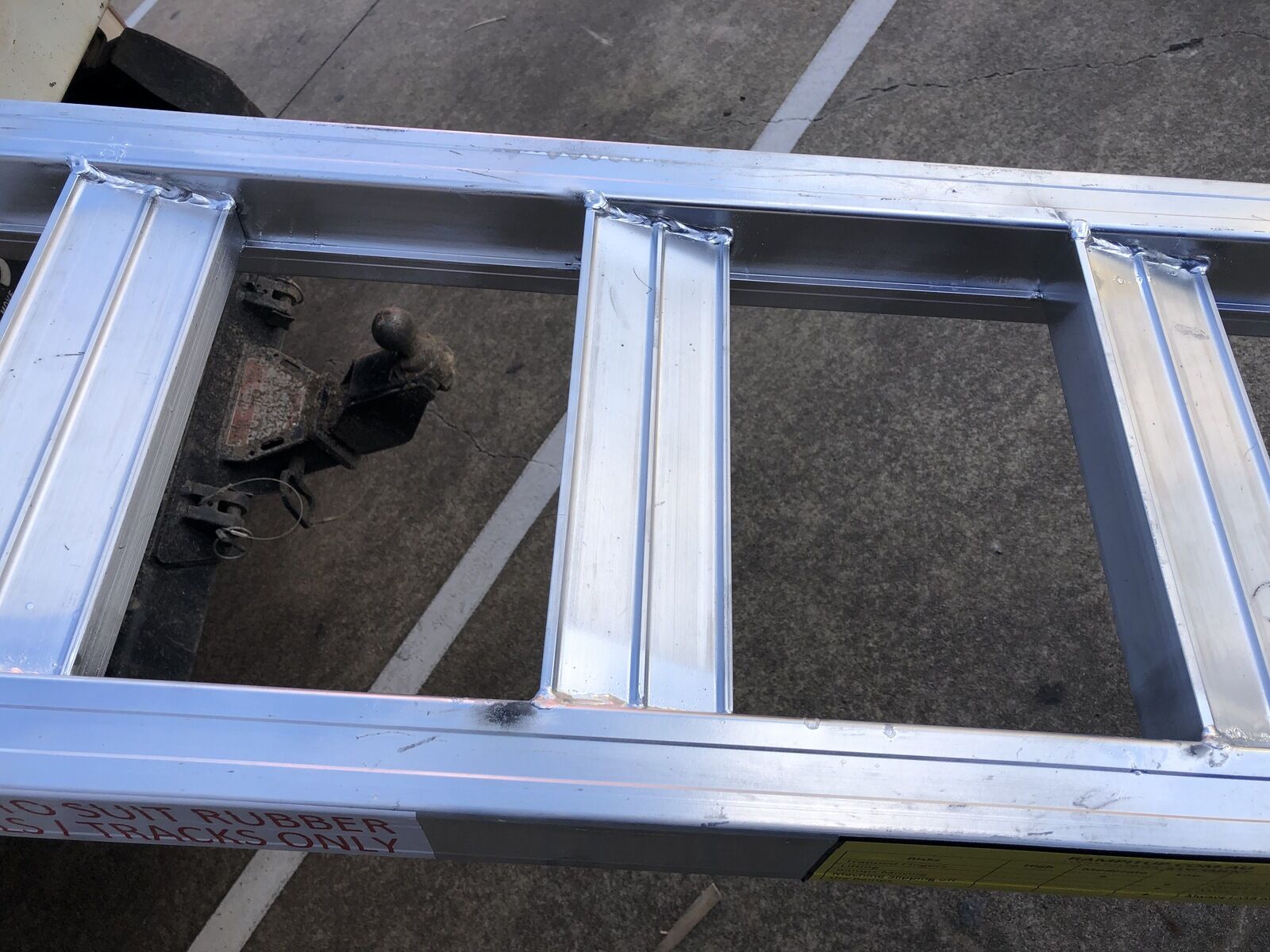

Rung Type: Angle
Max Load Height (mm): 720
Weight per Ramp (Kg): 15
Load Capacity per pair (Kg): 2000




SKU HDR240.28.20
Brand Ramptec
Shipping Weight 30.0000kg
Shipping Width 0.360m
Shipping Height 0.160m
Shipping Length 2.400m
Shipping Cubic 0.138240000m3
