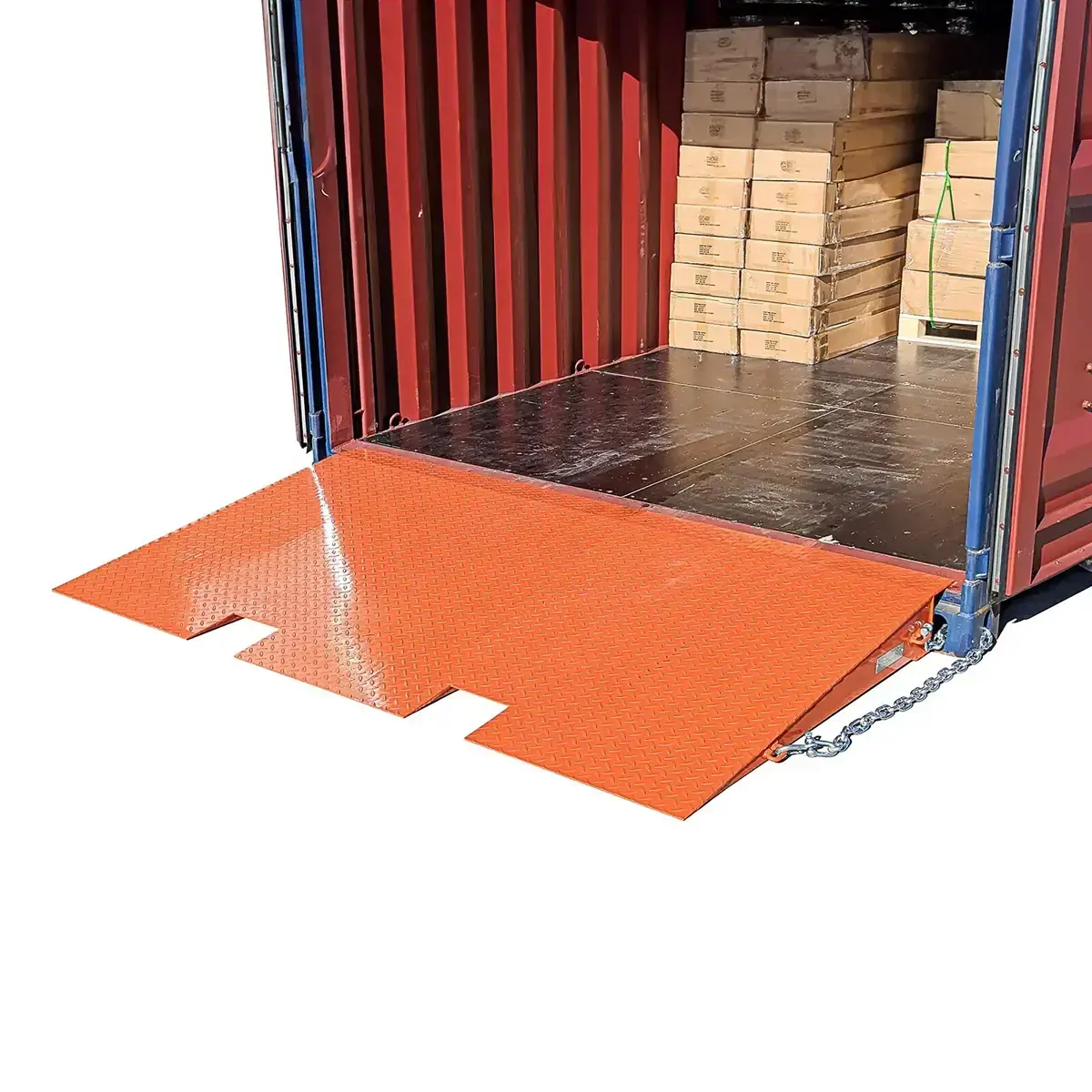

Secure your loading operations with our 7,000kg (SWL) Container Ramp. Designed as a high-strength, economic bridge for shipping containers, this ramp ensures a smooth transition for forklifts while maintaining the highest safety standards on the market.

Why This Shipping Container Ramp is a Game-Changer

✓7,000kg SWL Capacity Engineered for heavy-duty lifts.
✓Safety Orange Finish High-vis coating for site safety.
✓Anti-Slip Traction Superior grip in all weather conditions.
✓Secure Chain Anchors Prevents ramp-to-container slippage.
✓Low Profile 160mm Protects forklift transmissions and forks.
✓One-Man Deployment Easily moved via forklift in seconds.
✓Extra Wide 2200mm Safer maneuvering for large loads.
✓Reinforced Steel Industrial-grade durability.

Technical Specifications

Working Load Limit (WLL) 7,000 kg
Overall Width 2200 mm
Overall Length 1260 mm
Incline Height 160 mm
Unit Weight 176 kg
Finish High-Visibility Australian Safety Orange

Compliance & Australian Standards

This Container Ramp is rated to 7000kg Safe Working Load (SWL) and is designed and fabricated strictly in accordance with the following relevant Australian Standards:

  • AS/NZS 1554.1: 2000 – Structural Steel Welding (Welding of Steel Structures)
  • AS 2359.1 – 1995 – Powered Industrial Trucks (General Requirements)
  • AS 2359.2 – 1985 – SAA Industrial Truck Code (Operation)
  • AS 3990 – 1993 – Mechanical Equipment (Steelwork)

Frequently Asked Questions

How is the ramp secured to the container?

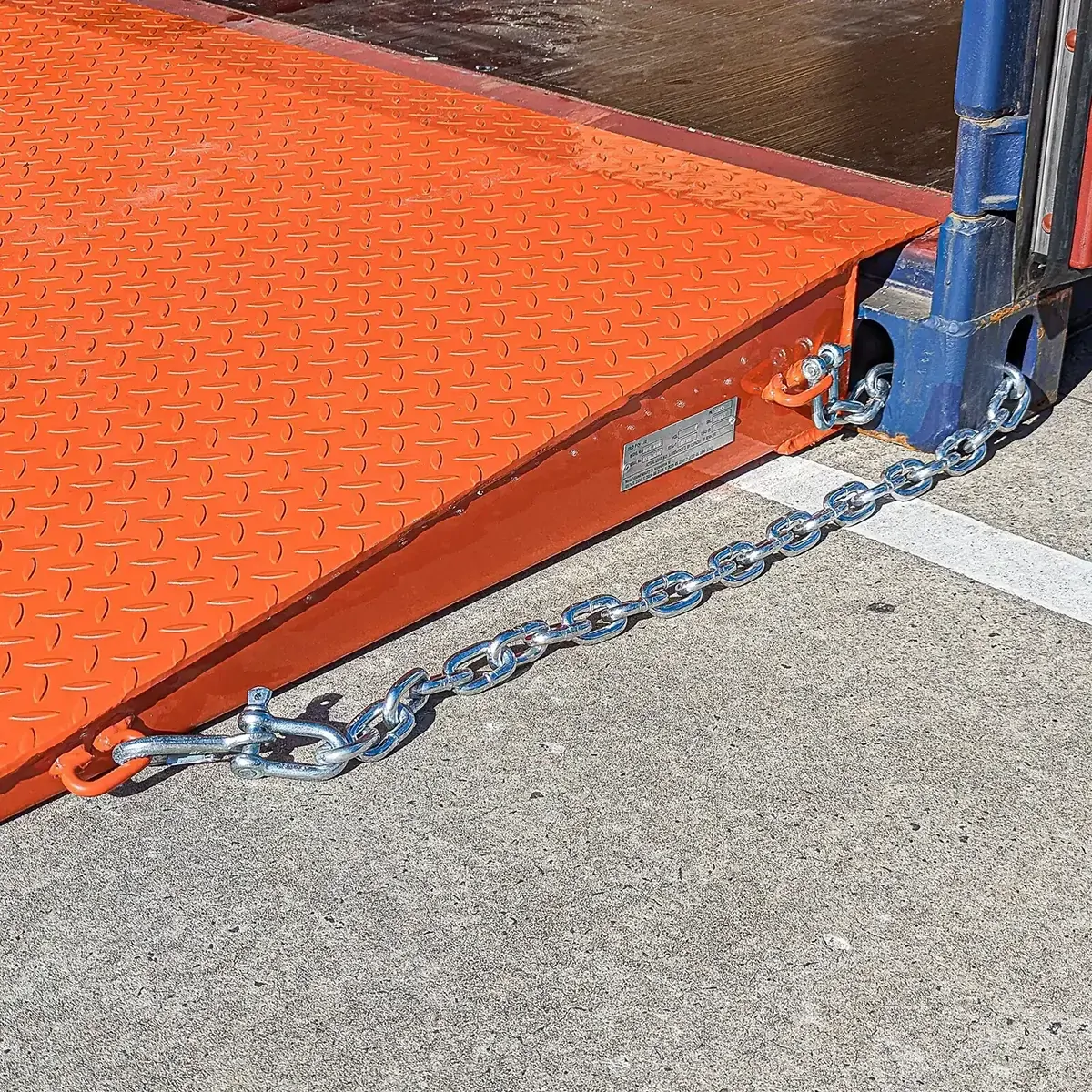

We supply high-tensile safety chains with every unit. These wrap through the container locking eyes and secure back to the ramp to prevent movement during operation.

What kind of ground surface is required?

For safety, use the ramp on flat, level, and hard surfaces like concrete or bitumen to ensure stable weight distribution.

Can this ramp be used with reefer containers?

Yes. However, because refrigerated containers sit slightly higher, always check your specific floor height against our 160mm ramp height for a flush fit.

What does ""SWL"" mean for my site?

Safe Working Load. It ensures the ramp can handle a total load of 7 tonnes (forklift + cargo) safely without structural compromise.

What maintenance is required?

Minimal. We recommend weekly visual checks of the safety chains and a monthly inspection of the structural steel for any debris or damage.

Does it arrive pre-assembled?

Yes, it arrives as a fully welded, single-piece unit ready for immediate use.

Can one person set this up?

Yes. Although it weighs 176kg, it is designed for a single forklift operator to position it in less than a minute.

(RTContramp)

SKU RTContramp
Brand Ramptec
Shipping Weight 176.0000kg
Shipping Width 2.300m
Shipping Height 0.160m
Shipping Length 1.200m
Shipping Cubic 0.441600000m3
