SKU : MHCM1HD

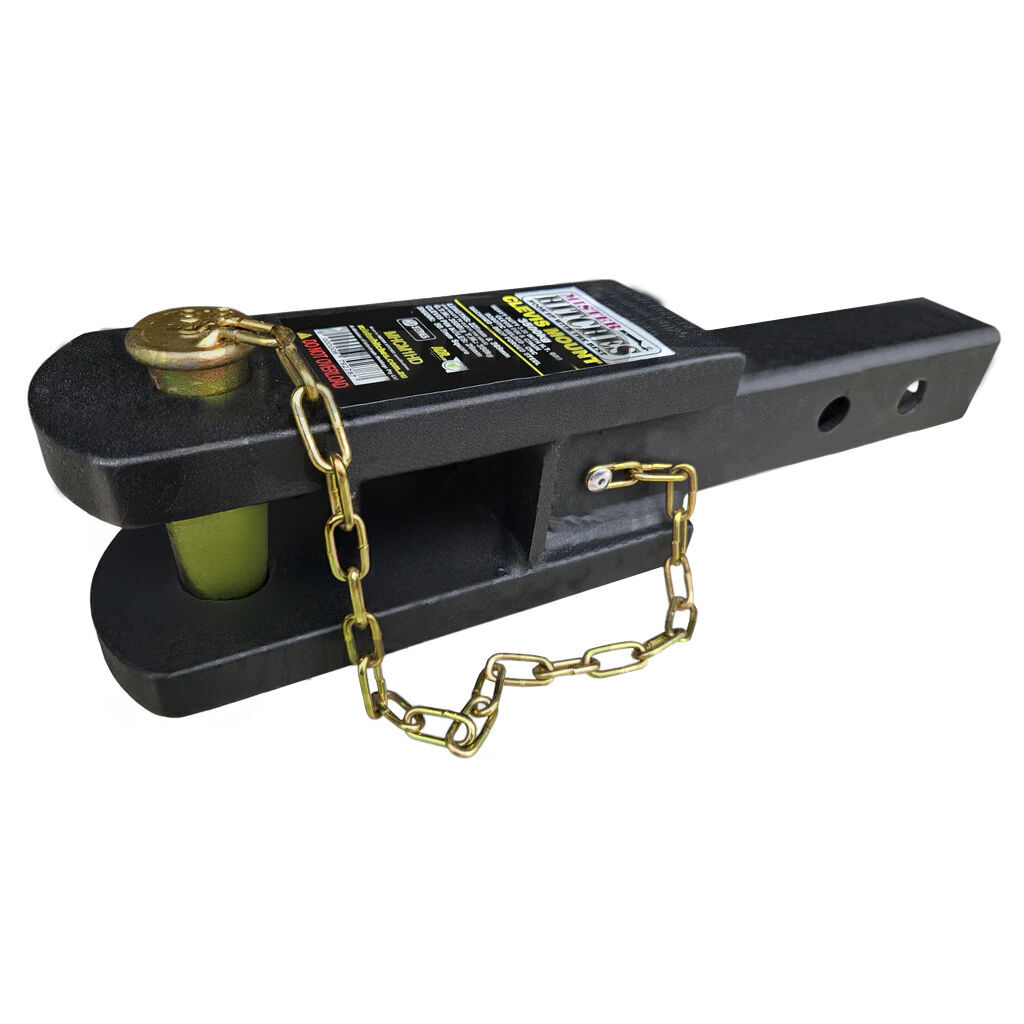

This Clevis Mount has been designed for strength. CNC machined and robotic welding makes this hitch one of the best of its kind.
Mainly used in rural areas for towing farming plant & equipment, eg. spreaders etc.
This Clevis Mount incorporates a super strong 1” dia. GR8 Clevis Pin which has been rated at 5700kg and is tethered to the mount
using a zinc plated chain to prevent loss of the pin when not in use.
.
Features:

G.T.W.: 3500kg  T.W.: 350kg
2 PIN HOLES GIVE LENGTHS OF 229 & 289mm  (Measured from pin holes to clevis pin hole).
25.4mm (1”)  GRADE 8 ZINC
CLEVIS PIN (5700kg rated) & SUPPORT CHAIN.
USEABLE SHANK LENGTH : 175MM.
CLEVIS MOUNT HITCH
HEAVY DUTY 3500kg with PIN

75mm x 20mm CLEVIS TANGS.

INCLUDES STRENGTHENING PLATE BETWEEN TOP &  BOTTOM TANGS.

SEAGUARD MATTE BLACK POWDER COAT FINISH GIVES

SUPERIOR CORROSION PROTECTION.

OVERALL LENGTH: 380mm.


(MHCM1HD)

SKU MHCM1HD
Brand MR Hitches
Shipping Weight 7.2000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.012000000m3
