SKU : MHABM-5XHDS

FEATURES:

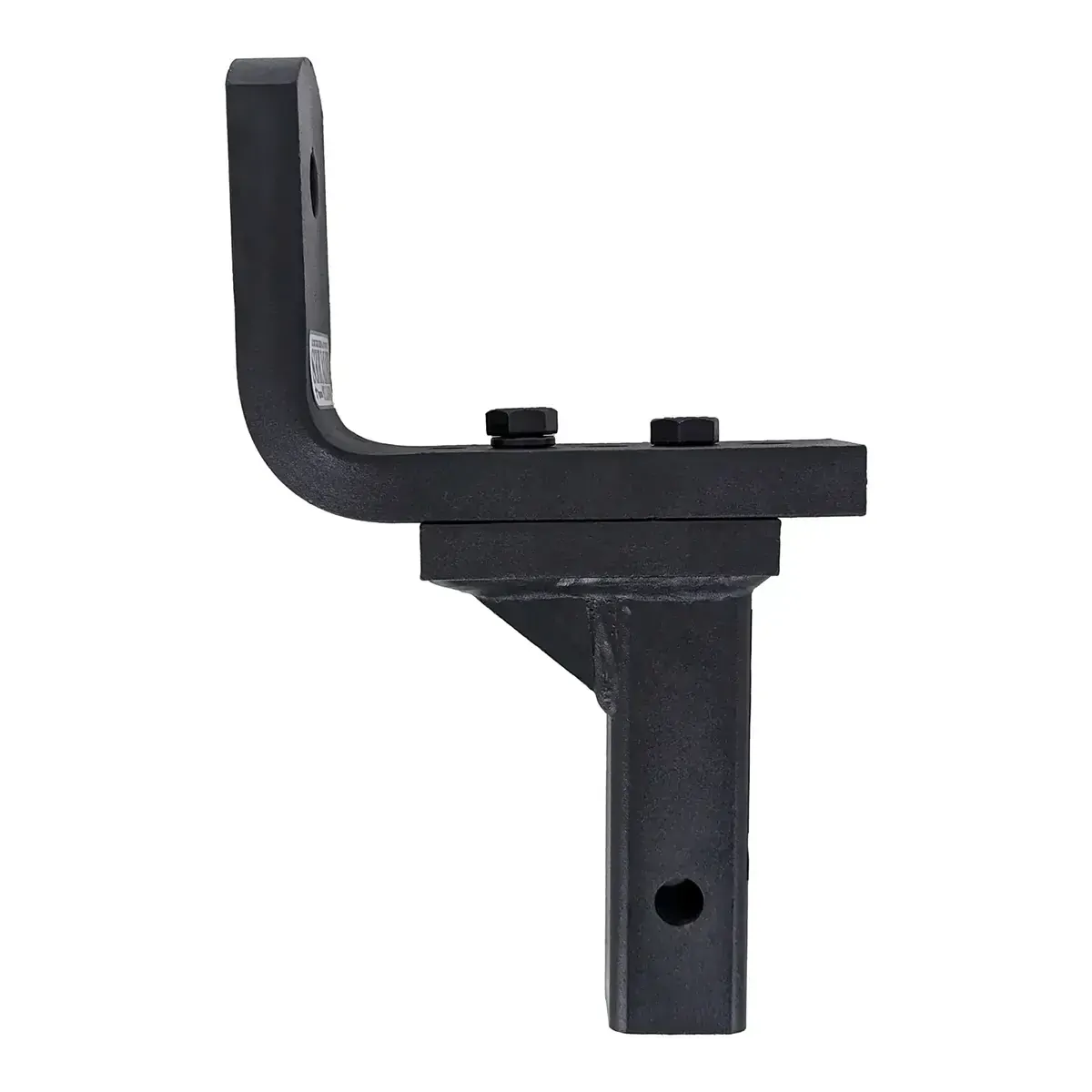

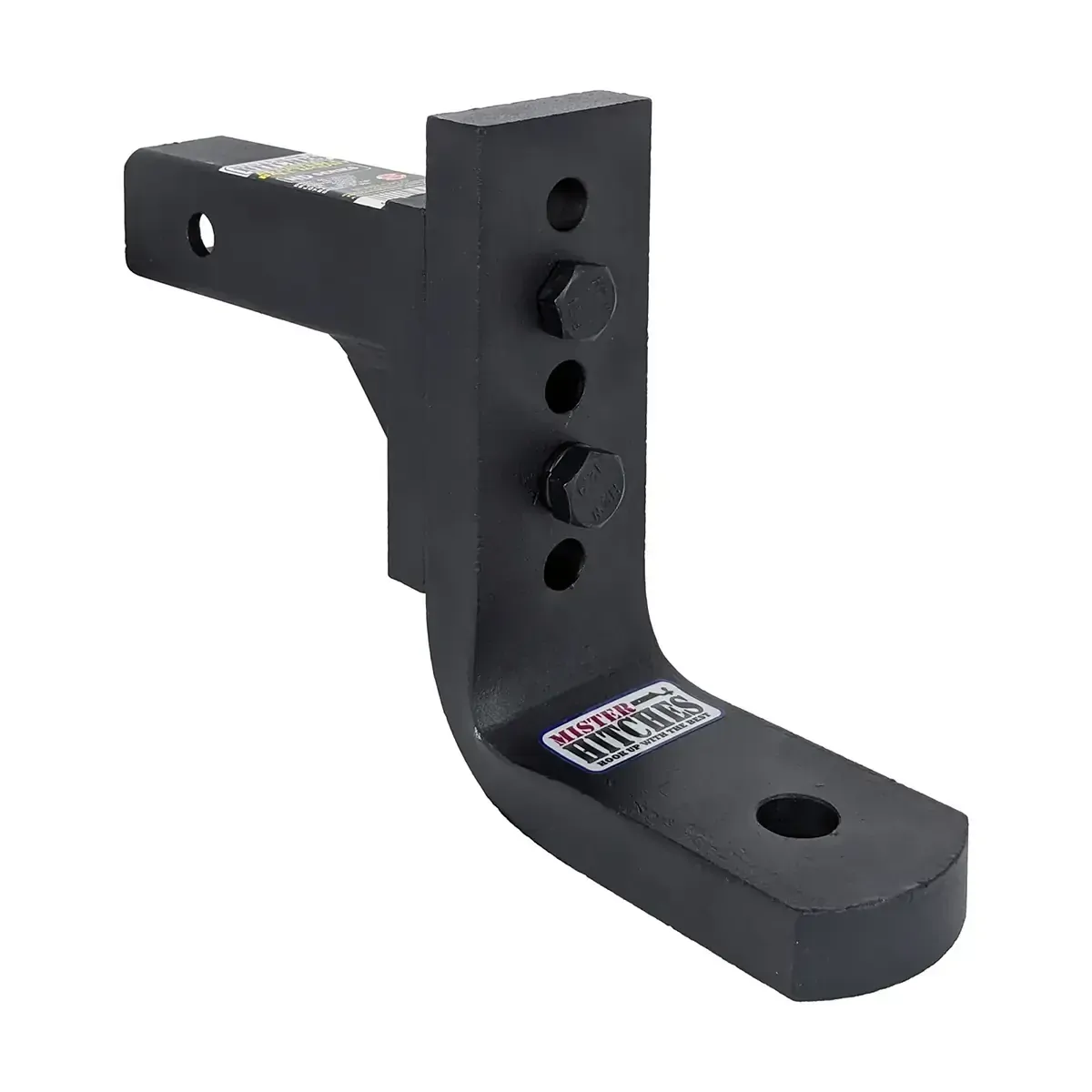

ADJUSTABLE & FULLY REVERSIBLE - 12 STAGES
BOTH PARTS OF THE HITCH ARE REVERSIBLE
6 STAGES OF DROP - 80MM/110MM/130MM/140MM/160MM/190MM
6 STAGES OF RISE - 50MM/80MM/105MM/110MM/135MM/165MM

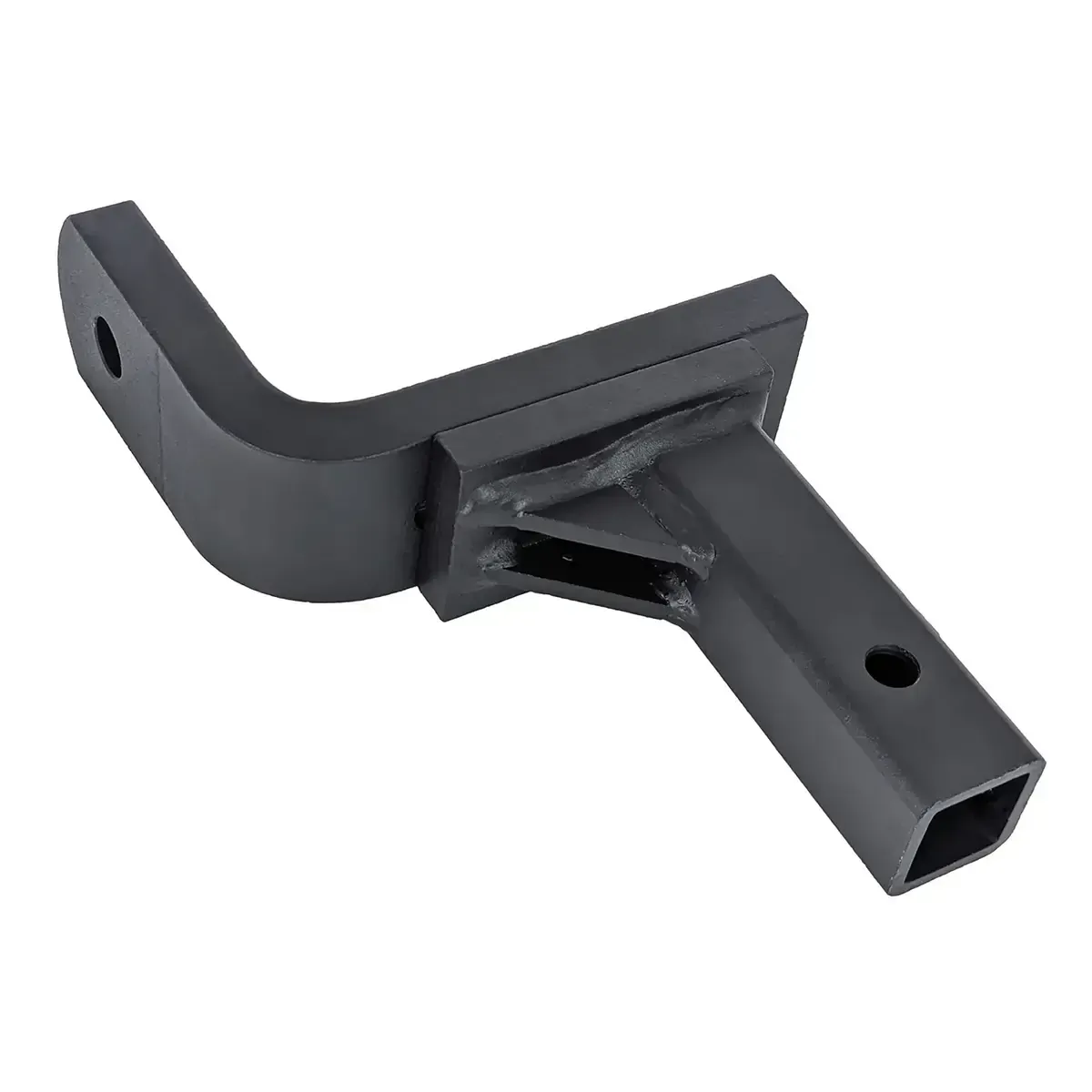

10MM DUAL SUPPORT GUSSETS FOR ADDED STRENGTH
NEW MODEL WITH SHORT LENGTH SHANK (RANGER SHALLOW RECEIVER COMPATIBLE PIN HOLE ) (50mm from end of shank))

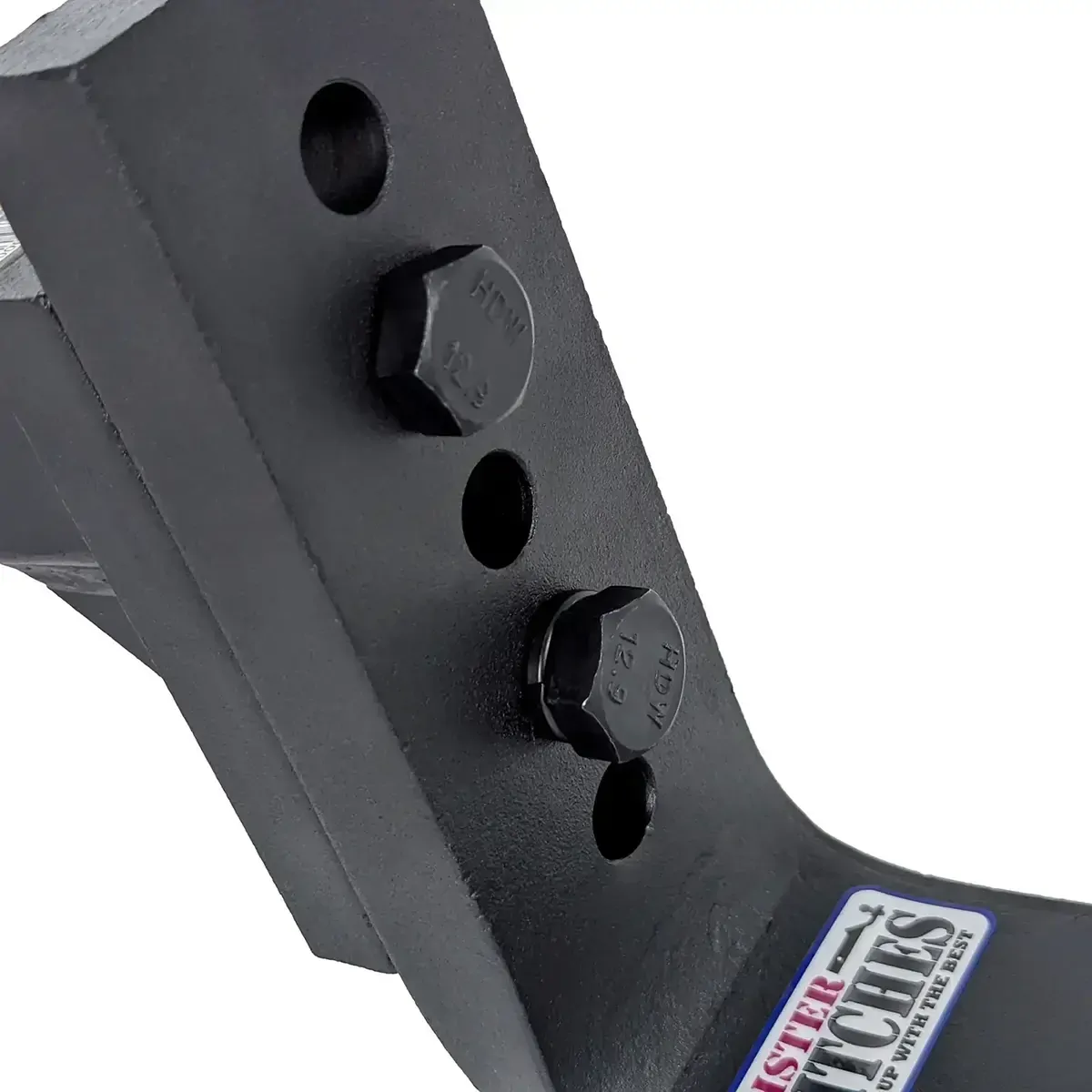

USES 12.9 GRADE HIGH TENSILE 16MM BOLTS (TORQUE to 189Nm)
25MM X 75MM HEAVY DUTY BALL PLATFORM.
MATT BLACK SEAGUARD FINISH
5.75mm THICK STEEL SHANK
ROBOTIC WELDED FOR CONSISTENT QUALITY
CNC MACHINED FOR MAXIMUM ACCURACY
FITS 2"" X 2"" TOWBAR RECEIVERS
ADR62 COMPLIANT
DESIGNED BY MISTER HITCHES AUSTRALIA
GROSS TRAILER WEIGHT: 4000KG

TONGUE WEIGHT: 400KG

BALL HOLE SIZE: 7/8""

MAX DROP: 190MM

MAX RISE: 165MM

LENGTH: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) 262MM

PIN HOLE TO END OF SHANK 50MM

END OF SHANK TO GUSSET 120MM

SUITS STONE STOMPER UNDER BALL BRACKET & MOST COUPLINGS EG. D035

MEASUREMENTS ARE APPROXIMATE

(MHABM-5XHDS)

SKU MHABM-5XHDS
Brand Mister Hitches
Shipping Weight 8.0000kg
Shipping Width 0.240m
Shipping Height 0.090m
Shipping Length 0.180m
Shipping Cubic 0.003888000m3
