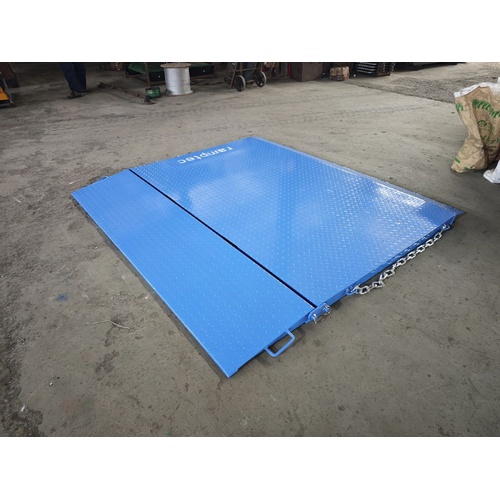

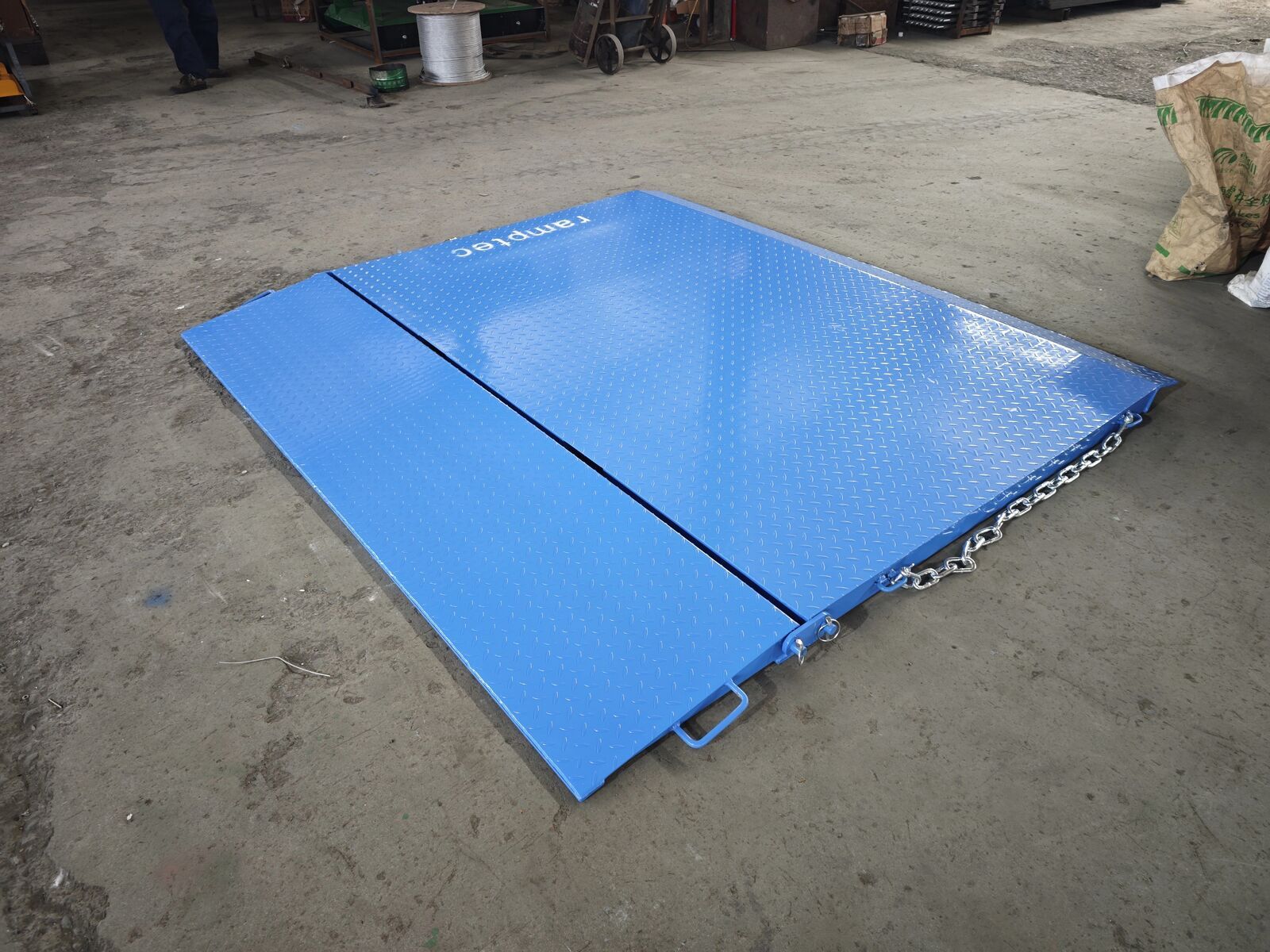

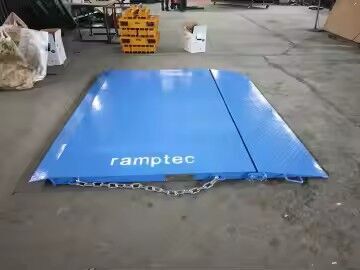

The Folding Container Ramp is designed for bridging into standard containers from ground level. The self-levelling lip allows for full load capacity when on slightly uneven ground. The Ramp Footing folds up to allow access to the fork slippers for transport. Hand Grip Loops are provided for this purpose. The standard finish is enamel painted ‘Safety Blue’ over primed steel.

7000kg Working Load Limit
Unit Weight 295kg
Width 2200mm, Length 2000mm
Fork Pocket Size:165mm x 60mm


Technical Specifications

Working Load Limit (WLL) 7,000 kg
Overall Width 2200 mm
Overall Length

2000 mm
Incline Height 160 mm
Unit Weight 295kg
Finish High-Visibility Blue

Compliance & Australian Standards

This Container Ramp is rated to 7000kg Safe Working Load (SWL) and is designed and fabricated strictly in accordance with the following relevant Australian Standards:

  • AS/NZS 1554.1: 2000 – Structural Steel Welding (Welding of Steel Structures)
  • AS 2359.1 – 1995 – Powered Industrial Trucks (General Requirements)
  • AS 2359.2 – 1985 – SAA Industrial Truck Code (Operation)
  • AS 3990 – 1993 – Mechanical Equipment (Steelwork)

Frequently Asked Questions

How is the ramp secured to the container?

We supply high-tensile safety chains with every unit. These wrap through the container locking eyes and secure back to the ramp to prevent movement during operation.

What kind of ground surface is required?

For safety, use the ramp on flat, level, and hard surfaces like concrete or bitumen to ensure stable weight distribution.

Can this ramp be used with reefer containers?

Yes. However, because refrigerated containers sit slightly higher, always check your specific floor height against our 160mm ramp height for a flush fit.

What does ""SWL"" mean for my site?

Safe Working Load. It ensures the ramp can handle a total load of 7 tonnes (forklift + cargo) safely without structural compromise.

What maintenance is required?

Minimal. We recommend weekly visual checks of the safety chains and a monthly inspection of the structural steel for any debris or damage.

Does it arrive pre-assembled?

Yes, it arrives as a fully welded, single-piece unit ready for immediate use.

Can one person set this up?

Yes. Although it weighs 295kg, it is designed for a single forklift operator to position it in less than a minute.

(RTContrampFLD)

SKU RTContrampFLD
Brand Ramptec
Shipping Weight 295.0000kg
Shipping Width 2.300m
Shipping Height 0.160m
Shipping Length 1.200m
Shipping Cubic 0.441600000m3
