SKU: MTMFG1941

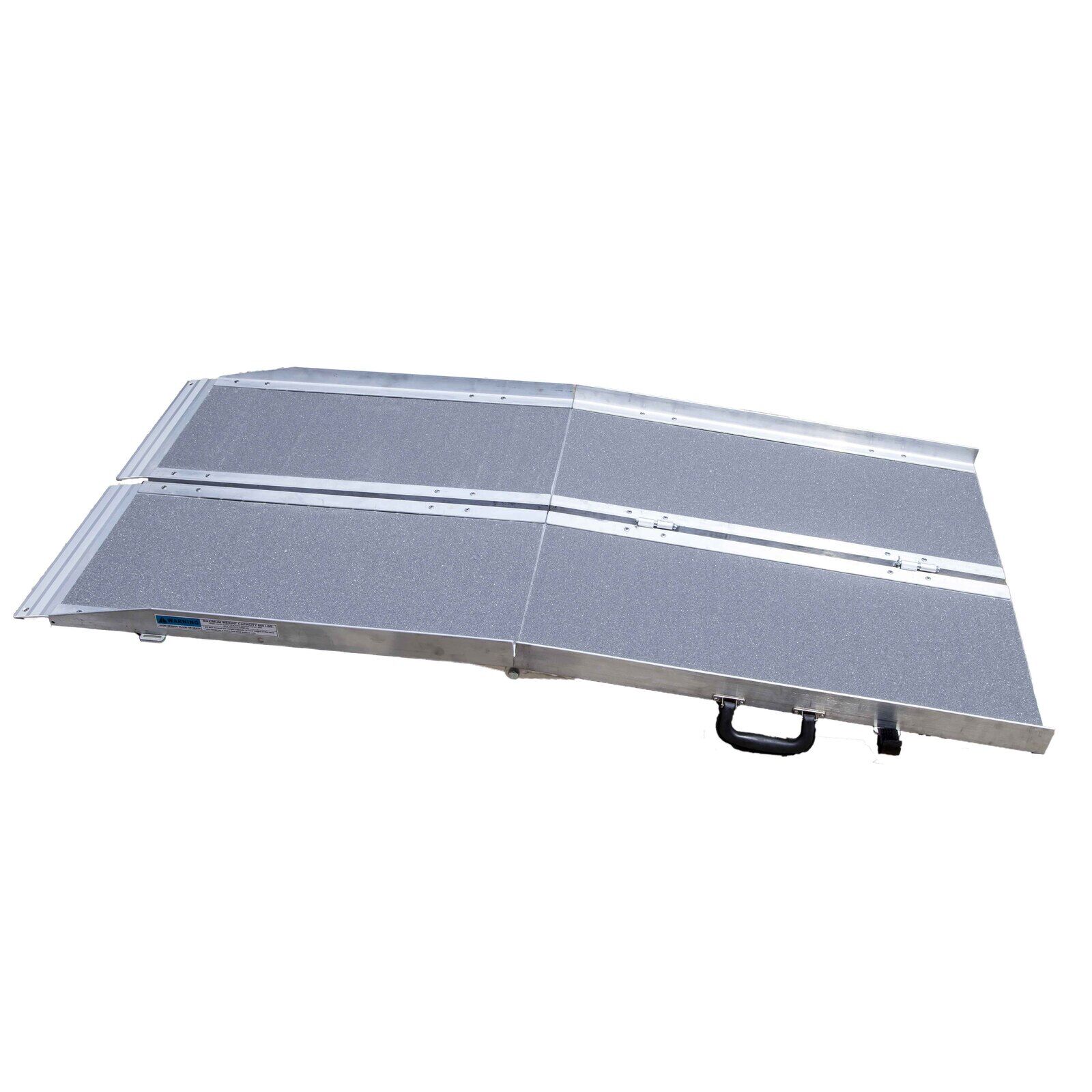

Loading and unloading will be made easier with this Portable Aluminium Folding Loading Wheelchair Ramp. Various sizes are available ranging from 2 Feet – 8 Feet. Made from super strong aluminium construction which is light-weight and portable to use. The ramp is centre folding with a convenient carry handle. Surface is a non-skid surface for added safety.
Ideal for indoor and outdoor use with a maximum load capacity of 275kg. (Weight rating based on evenly distributed load on 2 axles)

Features:

Portable Aluminium Folding Loading Wheelchair Ramp
Sizes available from 2 Feet Long to 8 Feet
Maximum Load Capacity of 272 kg
Super Strong Aluminium Construction
Light-weight & Portable

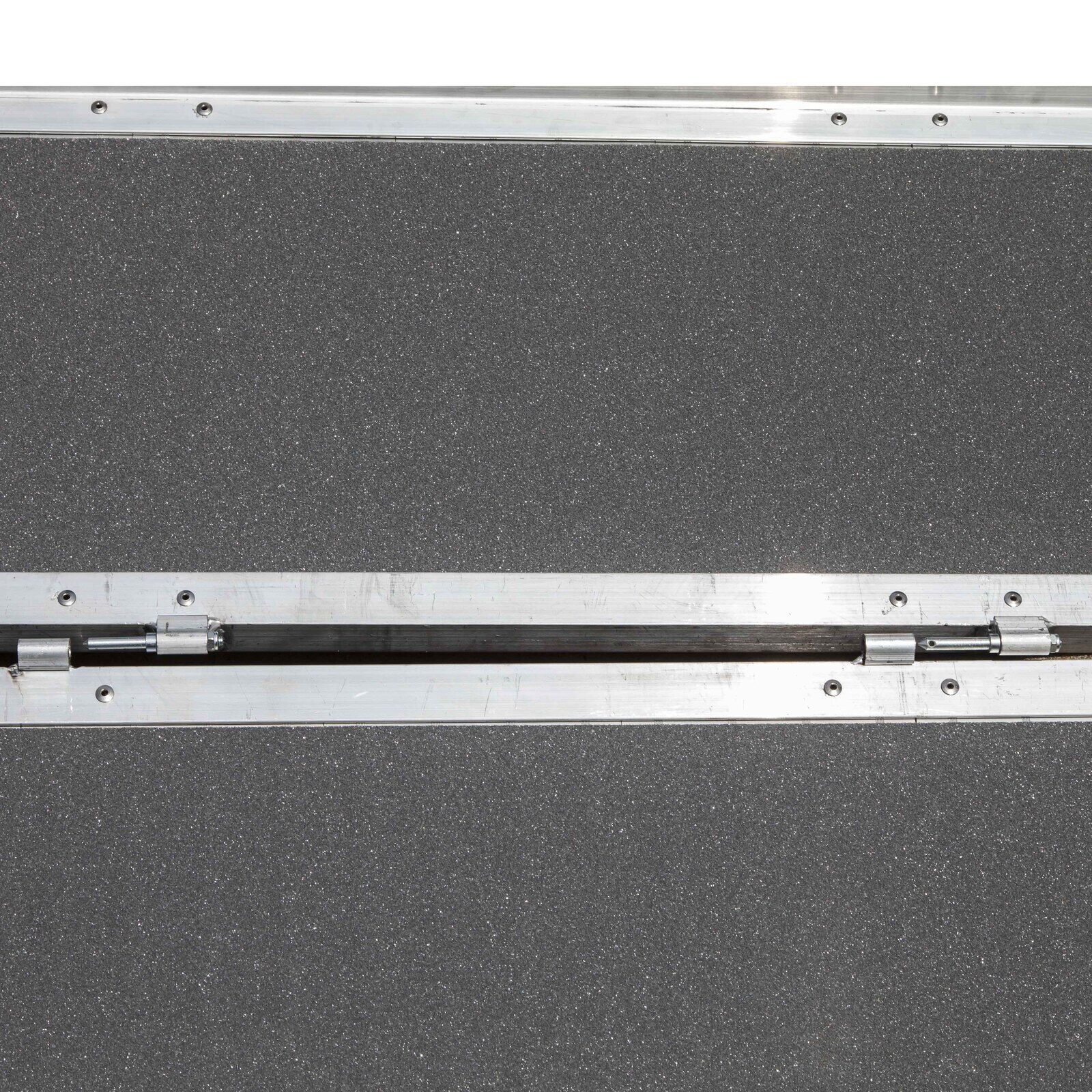

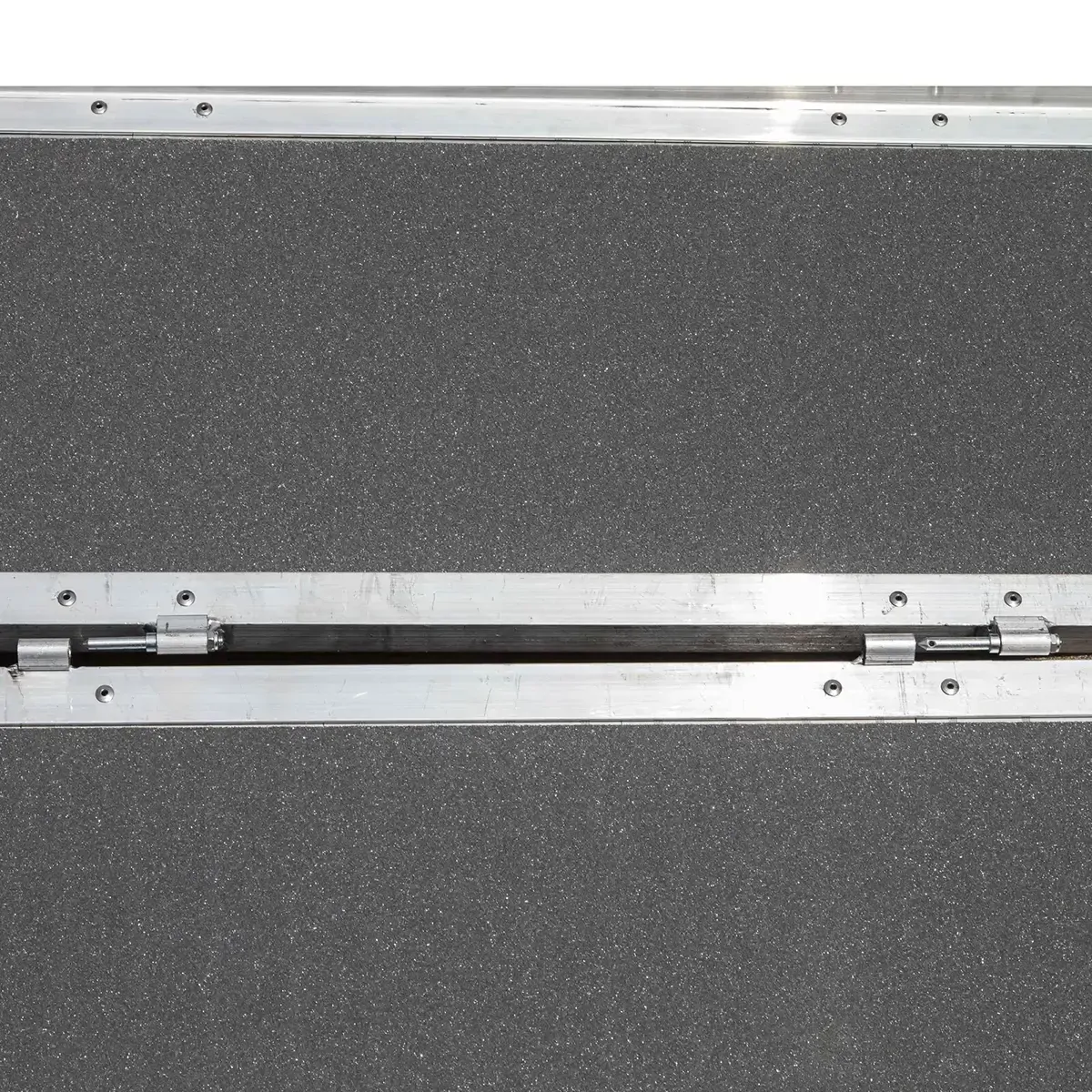

Non-Skid Safety Surface - Grit Tape
Suitable for Curbs, Steps & many more applications
Multi-purpose, Ideal for Indoor & Outdoor Use

Specifications:

4 Foot Ramp Occupied Loading 8" max, unoccupied loading height 12"
5 Foot Ramp Occupied Loading 10" max, unoccupied loading height 15"
6 Foot Ramp Occupied Loading 12" max, unoccupied loading height 18"
7 Foot Ramp Occupied Loading 14" max, unoccupied loading height 21"
8 Foot Ramp Occupied Loading 16" max, unoccupied loading height 24"

* Occupied is a person sitting in the wheelchair/scooter while loading

* Unoccupied is loading with nobody sitting in the wheelchair/scooter

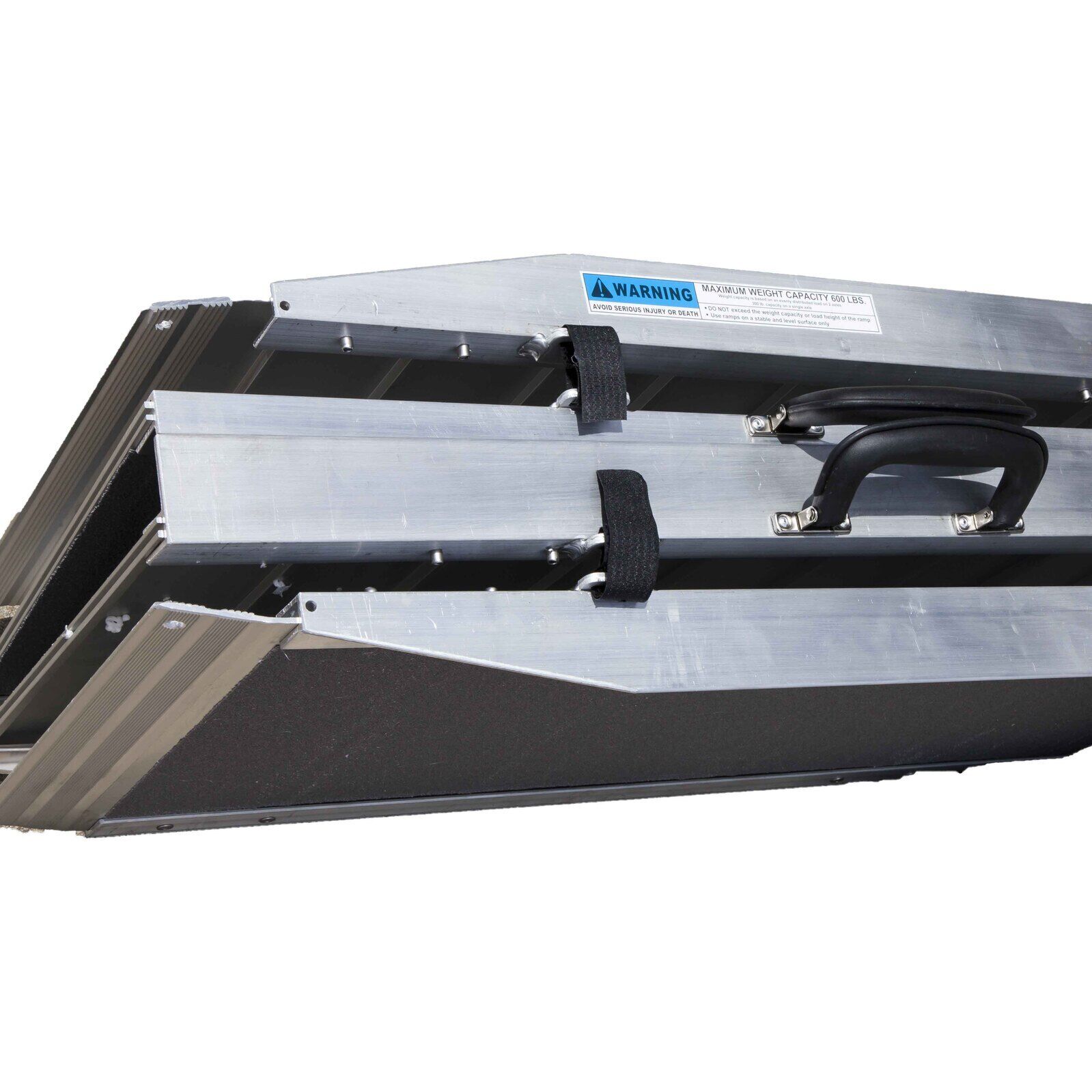

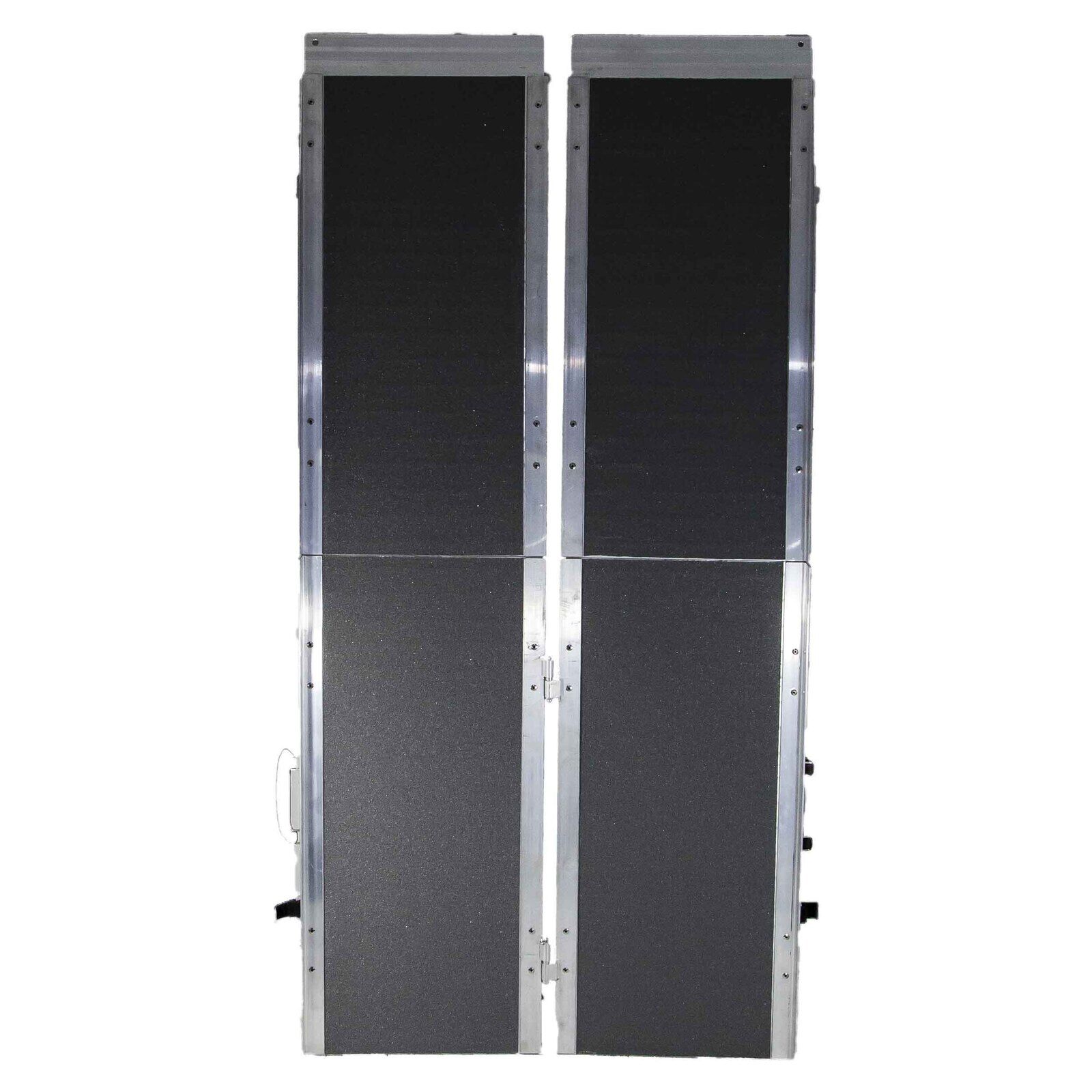

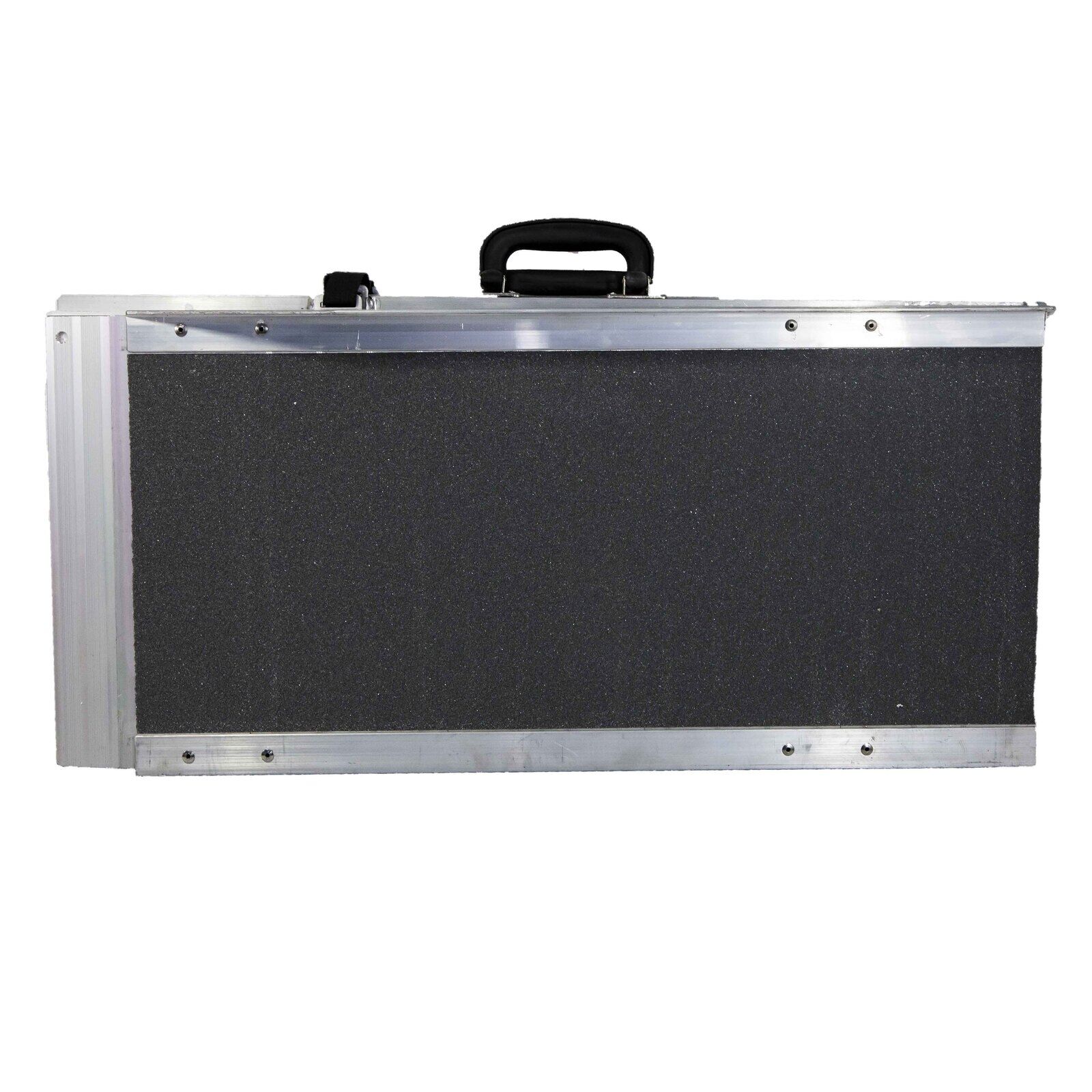

Can be folded and divided into two pieces when not in use for carrying or can be used as 2 individual ramps

Approximate Size

4 Foot 120cm x 73cm - Weight 11 KG
5 Foot 150cm x 73cm - Weight 15.6 KG
6 Foot 180cm x 73cm -Weight 18.3 KG
7 Foot 210cm x 73cm - Weight 20.8 KG
8 Foot 240cm x 73cm - Weight 24 KG
